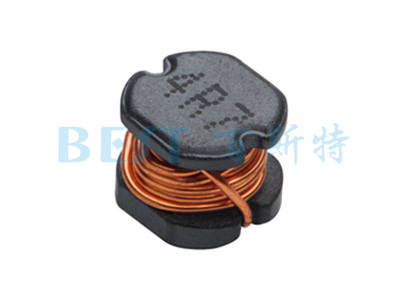

CD54貼片功率電感封裝尺寸圖
| TYPE(規格型號) | A | B | C | D | E | F | G |
| CD32 | 3.0±0.3 | 2.1±0.3 | 3.5±0.3 | 1.0 | 1.6 | 3.5 | 0.8 |
| CD43 | 4.0±0.3 | 3.2±0.3 | 4.5±0.3 | 1.4 | 1.75 | 4.5 | 1.2 |
| CD53 | 5.2±0.3 | 3.0±0.3 | 5.8±0.3 | 2.1 | 2.15 | 5.5 | 1.7 |
| CD54 | 5.2±0.3 | 4.5±0.3 | 5.8±0.3 | 2.1 | 2.15 | 5.5 | 1.7 |
| CD75 | 7.0±0.3 | 5.0±0.3 | 7.8±0.3 | 2.5 | 3.0 | 7.5 | 2.0 |
?
CD54貼片功率電感參數
| 型號 | ?電感值(μH)? | DCR (Max)直流電阻(Ω) | IDC (Max)額定電流(A)? | ?測試頻率(kHz) |
| CD54-1.0uH/M | 1.0 | 0.013 | 4.60 | 100 |
| CD54-1.2uH/M | 1.2 | 0.015 | 4.50 | 100 |
| CD54-1.5uH/M | 1.5 | 0.020 | 4.00 | 100 |
| CD54-2.2uH/M | 2.2 | 0.026 | 3.50 | 100 |
| CD54-3.3uH/M | 3.3 | 0.035 | 3.00 | 100 |
| CD54-4.7uH/M | 4.7 | 0.045 | 2.80 | 100 |
| CD54-5.6uH/M | 5.6 | 0.050 | 2.70 | 100 |
| CD54-6.8uH/M | 6.8 | 0.060 | 2.50 | 100 |
| CD54-8.2uH/M | 8.2 | 0.070 | 2.20 | 100 |
| CD54-10uH/M | 10 | 0.080 | 2.00 | 100 |
| CD54-15uH/M | 15 | 0.120 | 1.80 | 100 |
| CD54-22uH/M | 22 | 0.150 | 1.20 | 100 |
| CD54-27uH/M | 27 | 0.160 | 1.10 | 100 |
| CD54-33uH/M | 33 | 0.200 | 1.00 | 100 |
| CD54-39uH/M | 39 | 0.260 | 0.90 | 100 |
| CD54-47uH/M | 47 | 0.340 | 0.85 | 100 |
| CD54-56uH/M | 56 | 0.380 | 0.80 | 100 |
| CD54-68uH/M | 68 | 0.440 | 0.60 | 100 |
| CD54-82uH/M | 82 | 0.500 | 0.60 | 100 |
| CD54-100uH/M | 100 | 0.660 | 0.50 | 100 |
| CD54-120uH/M | 120 | 0.850 | 0.45 | 100 |
| CD54-220uH/M | 220 | 1.500 | 0.25 | 100 |
| CD54-270uH/M | 270 | 1.800 | 0.23 | 100 |
| CD54-330uH/M | 330 | 2.500 | 0.30 | 100 |
| CD54-470uH/M | 470 | 3.400 | 0.30 | 100 |
| CD54-1.0mH/M | 1000 | 5.440 | 0.12 | 100 |
| ? | ? | ? | ? | ? |
| Remark:? ●? M Tolerance: N:±30% , M:±20% , ? ?K:±10% | ? | ? | ||
| ?????????????? ●? Inductance Tested at ? ?100kHz,0.25Vrms (20℃) | ? | ? | ||
| ?????????????? ●? IDC: DC current at ? ?which the inductance drops approximate 20% from its value without current | ||||
| ?????????????? ●? Operating? Temperature : -25℃ ~ +105℃ | ? | ? | ||
| ?????????????? ●? Measure Equipment: | ? | ? | ? | |
| ??????????????????? INDUCTANCE : Agilent ? ?HP-4284A , HP-4285A | ? | ? | ||
| ??????????????????? IDC : Agilent ? ?HP-4284A+HP-42841A | ? | ? | ? | |
| ??????????????????? DCR : CHEN HWA 502A | ? | ? | ? | |
